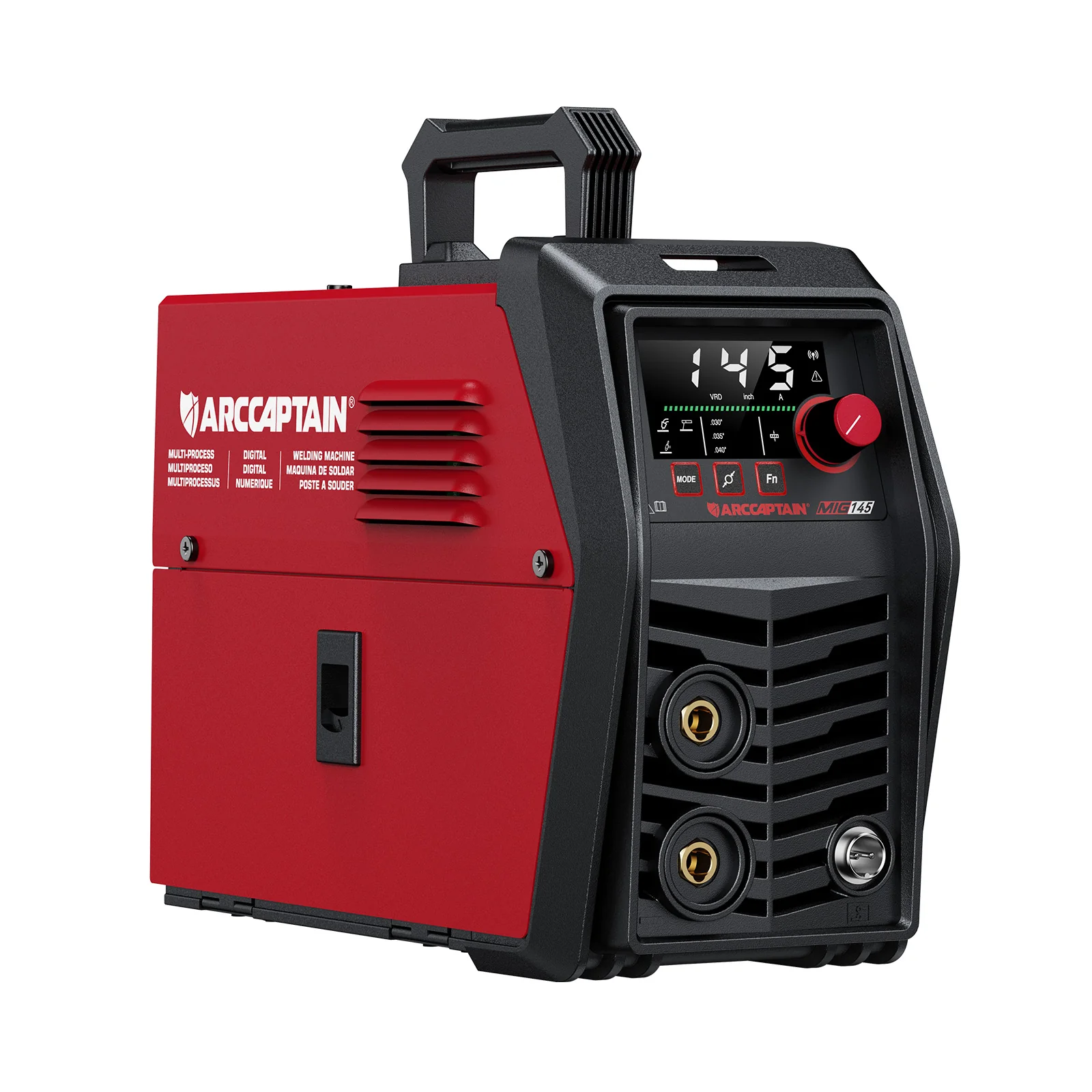

The MIG145 Pro is your 3-in-1 welding machine, packing serious capability into a compact package. Whether you're tackling weekend DIY projects or running a professional shop, this machine delivers with 3 essential processes: MIG, Stick, and Lift TIG welding.

Here's what makes the MIG145 Pro stand out:
• Smart SYN Technology — Just set your material thickness, and the welder automatically adjusts the wire speed for flawless results.
• User-Friendly LED Display - Easy-to-read interface puts complete control at your fingertips
• Built Tough - Rugged construction with safety-first features like VRD protection
• Portable Powerhouse - Lightweight design with detachable torch for easy transport and storage

Perfect for:

Home garage projects

Farm and ranch repairs

Auto body work

Light fabrication jobs

Technical details

Model	MIG145 Pro
Rated input voltage	Single-phase AC120V 50Hz/60Hz
Rated input power (KVA)	5
Welding current range(MIG,MMA,TIG)	40-145A(MIG) 20-145A(MMA) 20-145A(TIG)
Welding voltage range (MIG,MMA,TIG)	16-20V (MIG) 20.8-24.8V(MMA) 10.8V-14.8V (TIG)
Rated duty cycle^①	60%
No-load voltage (V)	U0=64；Ur=14.5
Applicable electrode(in)	0.030/0.035/0.040
Housing protection grade	IP21S
Insulation grade	H
Cooling mode	Air cooling
Overall efficiency	85%
Dimension	L12.8in x 5.7in x 9.7in
